Scheduler - capture and upload (FTP) a picture in intervals

1. Select the "Scheduler Settings" dialog from the "Adjust Camera" dialog



2. Press the "Add New Job" button
3. Select the job function. Press the "Picture Capture" radiobutton.
4. Press the "Picture Settings" button to open the "Picture Capturing" dialog
(if you have selected in the "General Settings" dialog to use the same settings for picture capturing and video recording in the normal mode, scheduler mode and motion detector mode, you can't adjust the settings here!)

5. Adjust the picture settings how you like. Be sure to have selected at least one picture format (JPG, BMP, etc. )

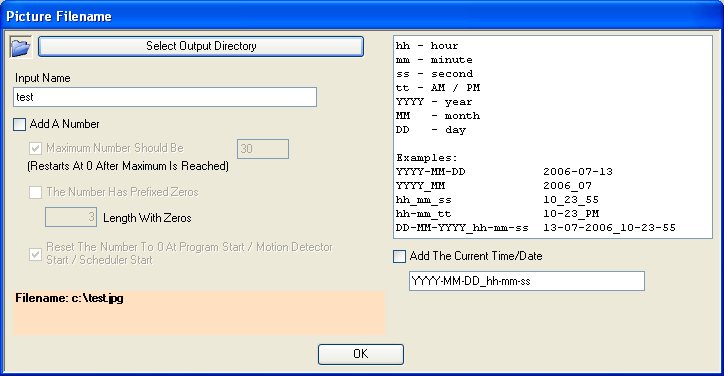

6. Press the "Picture Filename" button to open the "Picture Filename" dialog

7. Adjust the filename settings how you like.
8. Close the "Picture Filename" dialog, close the "Picture Capturing" dialog

9. Select the active job time. Select the "Work Within A Time Range In A Selected Interval" checkbox.

10. Press the "Select The Active Time Range" button to open the "Select The Active Time Range" dialog.

11. Select the used time range in which the interval should be active. Close the dialog.
12. Insert the interval for the picture capturing in the "Work Interval, Every x Second(s)" text field.

(You can also and additional use the "Work Once Exact At" and "Work Within A Time Range At Certain Minutes" and "Work At Scheduler Start/End" selections to adjust the needed points of time)

13. The new job is now available in the job listview. You can see the job function "Picture Capture" and the selected time range and interval.


14. Press the "Add New Job" button.
15. Select the job function. Press the "Connect, FTP Upload, Disconnect" radiobutton.
16. Press the "FTP Settings" button to open the "FTP Upload" dialog

17. Select the option "Upload The Files Under A Different Name". So the picture is uploaded under a different name and renamed to its original name after the upload is completed. This is necessary to prevent the displaying of an incomplete picture if the uploaded picture is displayed on your webpage.

18. Select the option "Upload Additional Files"!
19. Press the "Insert Files" button and select the filename "c:\temp\picture.jpg" or which you have choosen before under the picture capture settings from the first job!
20. Close this dialog.

21. Select the active job time. Select the "Work Within A Time Range In A Selected Interval" checkbox.

22. Press the "Select The Active Time Range" button to open the "Select The Active Time Range" dialog.

23. Select the same time range which you have selected for the picture capturing. Close the dialog.

24. Insert the same interval which you have selected for the picture capturing in the "Work Interval, Every x Second(s)" editfield.

25. There are now two jobs (functions) in the joblist included. First the picture capturing and second the FTP upload. Both of them have the same time range and the same interval. The picture capturing is listed above the FTP upload, so it is executed first. This is important, because the picture must be already captured when the FTP wants to upload the picture.

26. Close the "Adjust Camera" dialog.

27. Start the scheduler from the toolbar or the button from the camera preview window or from a menu.

28. In the scheduler listview from the main dialog you can see all scheduler jobs and the number of executions of the individual functions.
